Supplied as a Building Kit in 100% European Green Oak
(including Air Dried Oak Pegs).

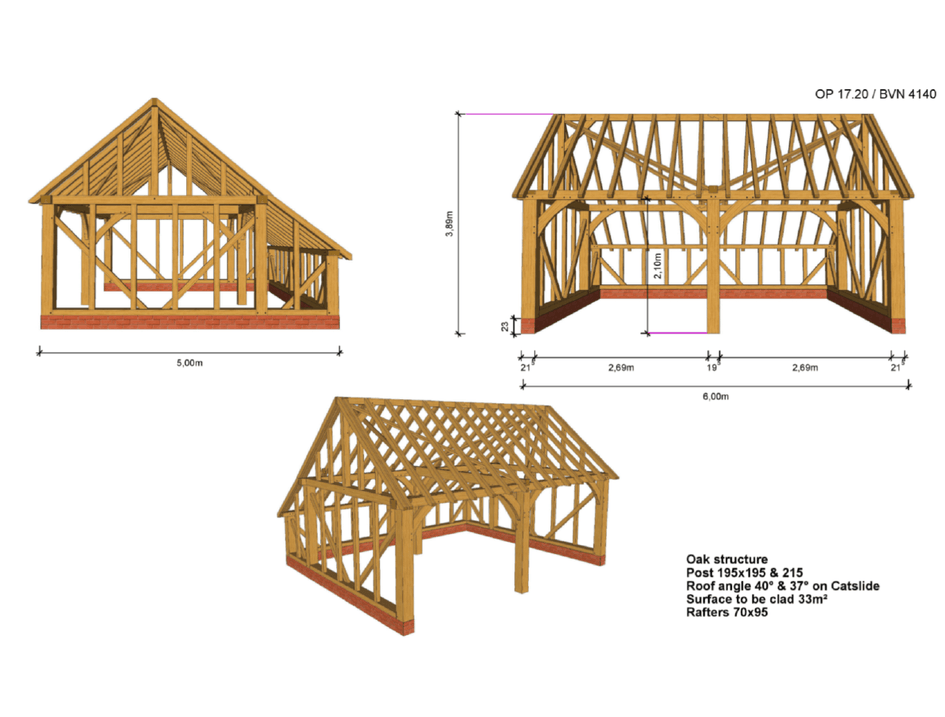

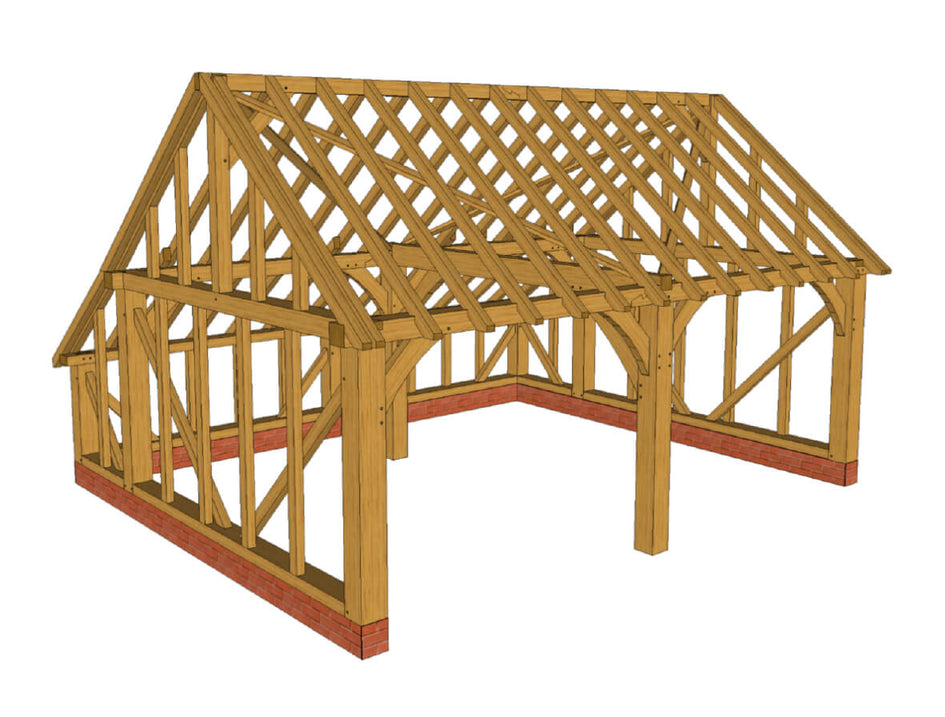

The two bay gable end and catslide offers the classic gable end style of garage with the addition of a catslide for extra space while coming in at under 4m height. Style D02 is made with 100% European green oak that complies with the QP1 standard. It has been constructed using traditional architectural styles and also jointed with time honoured styles that add longevity to the building.
Attractive to look at and able to withstand time and weather, this oak framed garage uses 215mm front posts and sole-plates so that a standard size brick plinth matches seamlessly. There are also set back braces that mean doors can be added in any style and the whole structure can be cladded.
Within the easy to assemble kit are air dried oak pegs, rafters and studwork as well as the option to swap the latter two with a softwood alternative. You will need to add roofing materials and brickwork to finish.
Optional Log Store Available
100% GREEN OAK
Unlike the majority of timber kits on the market, we make our products from 100% European Green Oak, including rafters and studwork. Not to be confused with the lower end of the market, we have aspired to recreate the detail and strength of a hand-crafted bespoke oak frame building as a pre-cut kit.
HIGH QUALITY, LATEST TECHNOLOGY
Our innovative machinery is capable of transferring, qualitatively and cost effectively, our detailed designs into accurate components. These components can then be quickly and easily erected by a professional carpenter/builder.
BRICK-WIDTH SOLEPLATE & UPRIGHTS
The uprights of our kits are 215mm, to match that of a standard brick size, ensuring the build is easier without custom bricks. The beam integrates seamlessly with the brick plinth, so doors can be mounted directly.
Floor Areas: 30m²
Oak Posts: 195mm x 195mm
Oak Front Posts: 195mm x 215mm
Oak Rafters: 75mm x 125mm
Roof Pitch: 40° & 37° on Catslide
Timber Grade: QP1 (D24)
DELIVERY & ASSEMBLY INFORMATION
Lifting equipment is strongly recommended
Total Weight: 3571kg (approx)
Heaviest Component: 174kg (approx)
Longest Length: 3800mm
Total Volume: 2.976m³
Assembly Time: 2 day (3 man team)
