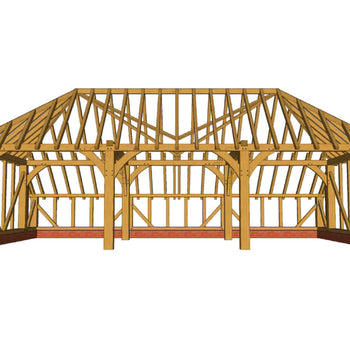

Oak Framed Garage Kit C03 - 3 Bay Full Hip & Catslide

Need extra space for your car or simply wish for more storage? With our oak framed garages there is no easier way to create that extra space. 3 bay Oak Framed Garage, Full Hip & Catslide.

Please get in touch below for a quote

  • Oak Framed Garage Kit C03 - 3 Bay Full Hip & Catslide



    Supplied as a Building Kit in 100% European Green Oak
    (including Air Dried Oak Pegs).



    • Uprights are 215mm to match that of a standard brick size
    • All pieces are numbered & labelled
    • Assembly instructions & parts list



    Optional Log Store available.



    The three bay full hip and catslide design of oak framed garage offers the combination of the three sizeable bays, the full hip design and the addition of the catslide for extra capacity. As the kit design is under 4m high, it often doesn’t require planning permission. This high-quality structure is made with precision engineering using the best quality European Green oak and is constructed using time honoured joint systems to add authenticity and longevity.



    This large garage structure, style C03, will make an attractive addition to your home but is also a very practical building. The use of 215mm front posts and sole-plates means you can add standard sized bricks for the plinth and the brace style, set back, allows doors to be added very easily. While the kit contains both rafters and studwork, these can be substituted to a softwood if desired and the roofing material of your choice simply needs to be added to complete the look. We also offer optional cladding if needed.





    KEY FEATURES


    100% GREEN OAK
    Unlike the majority of timber kits on the market, we make our products from 100% European Green Oak, including rafters and studwork. Not to be confused with the lower end of the market, we have aspired to recreate the detail and strength of a hand-crafted bespoke oak frame building as a pre-cut kit.



    HIGH QUALITY, LATEST TECHNOLOGY
    Our innovative machinery is capable of transferring, qualitatively and cost effectively, our detailed designs into accurate components. These components can then be quickly and easily erected by a professional carpenter/builder.



    BRICK-WIDTH SOLEPLATE & UPRIGHTS
    The uprights of our kits are 215mm, to match that of a standard brick size, ensuring the build is easier without custom bricks. The beam integrates seamlessly with the brick plinth, so doors can be mounted directly.

  • Please get in touch to find out our current lead time

    Once your oak framed kit is ready to be dispatched we will get in touch with you to arrange a suitable delivery date.

  • KIT SPECIFICATION

    Height: 3890mm

    Width: 8890mm

    Depth: 5000mm

    Floor Areas: 44.45m²

    Oak Posts: 195mm x 195mm

    Oak Front Posts: 195mm x 215mm

    Oak Rafters: 75mm x 125mm

    Roof Pitch: 40° & 37° on Catslide

    Timber Grade: QP1 (D24)


    DELIVERY & ASSEMBLY INFORMATION

    Lifting equipment is strongly recommended

    Total Weight: 4962kg (approx)

    Heaviest Component: 174kg (approx)

    Longest Length: 3800mm

    Total Volume: 4.135m³

    Assembly Time: 2 day (3 man team)
