Heavy Duty Shelf Brackets For Deep Shelves -
Heavy Duty Shelf Brackets For Deep Shelves
Heavy Duty Shelf Brackets For Deep Shelves - 150kg Capacity - 240mm
Heavy Duty Shelf Brackets For Deep Shelves - 150kg Capacity - 240mm
Couldn't load pickup availability
ECO FRIENDLY COMPANY
FRIENDLY & KNOWLEDGEABLE TEAM
THOUSANDS OF REVIEWS
Description
Description
The specified load bearing capacity applies:
-Only when used in pairs
-With even load distribution (surface loads)
-With proper and reliable attachment to the wall
-The fixing method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall (use other fixing material if necessary).

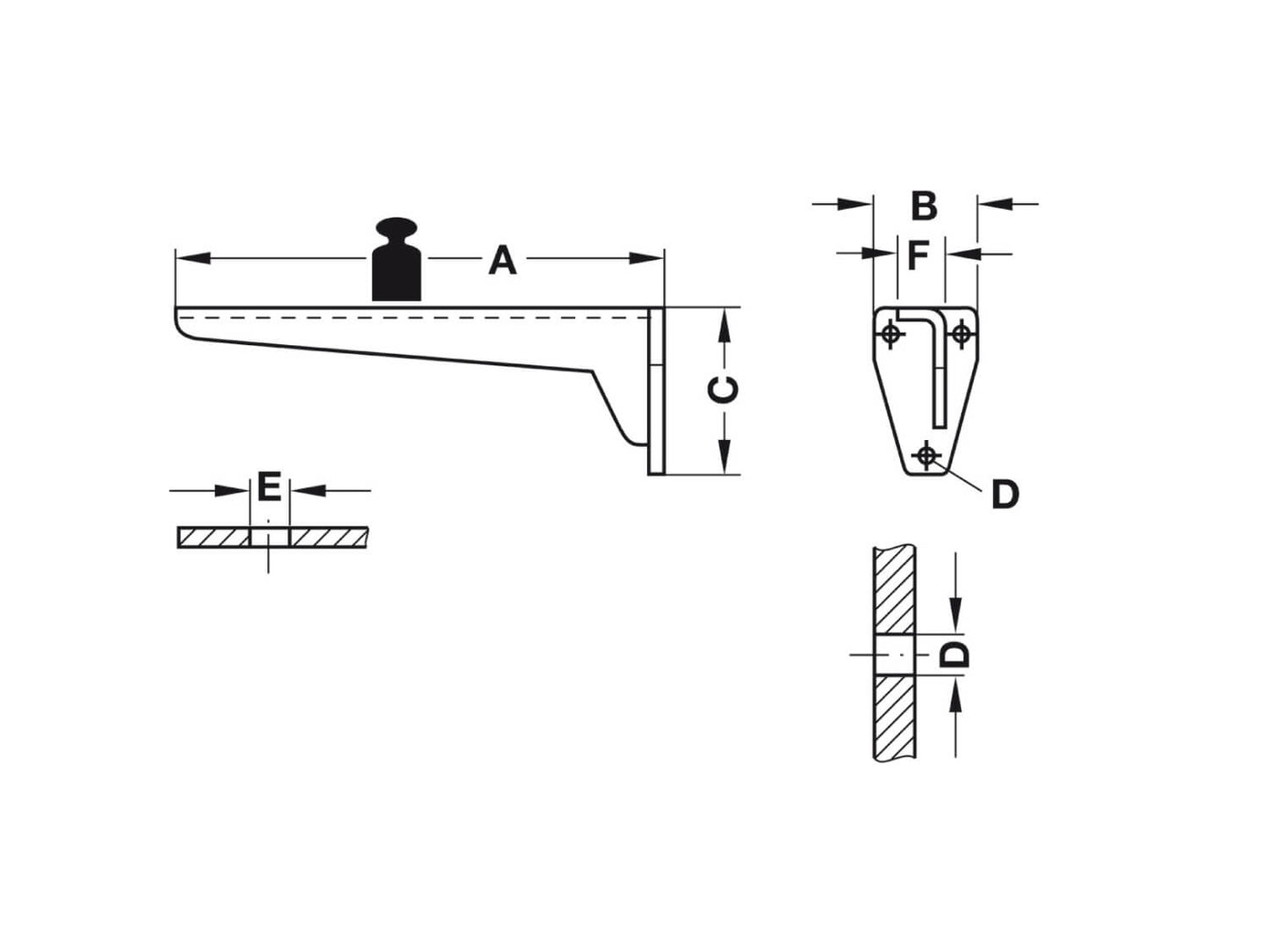

Dimensions (AxBxC): 240 x 46 x 80 mm, grey primed
Area of application
For wall mounting
Load bearing capacity per item
Colour/finish
Area of application
For wall mounting
Product version
Fixed
Material
Note on load bearing capacity
Per piece
tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test (with load bearing capacity 75 kg) or 2.5 kg plate for impact test (with load bearing capacity 250 kg), i.e. double load bearing capacity with surface load and 2 supports
shelf size must suit the respective bracket depth
Installation reference
The load carrying capacity value shown is dependent on certain conditions:
Appropriate fixings are used to fix the brackets to the wall. Wall mounting must accommodate the load capacity
The load is distributed evenly
The long arm being mounted on the wall (where applicable)
Maximum distance between brackets 800 mm
The properties and materials of the shelves and walls as well as the type of mounting material used must be taken into account
Material
Steel
Supplied with
Order qty: 1 pc (1 pc = 1 bracket)
