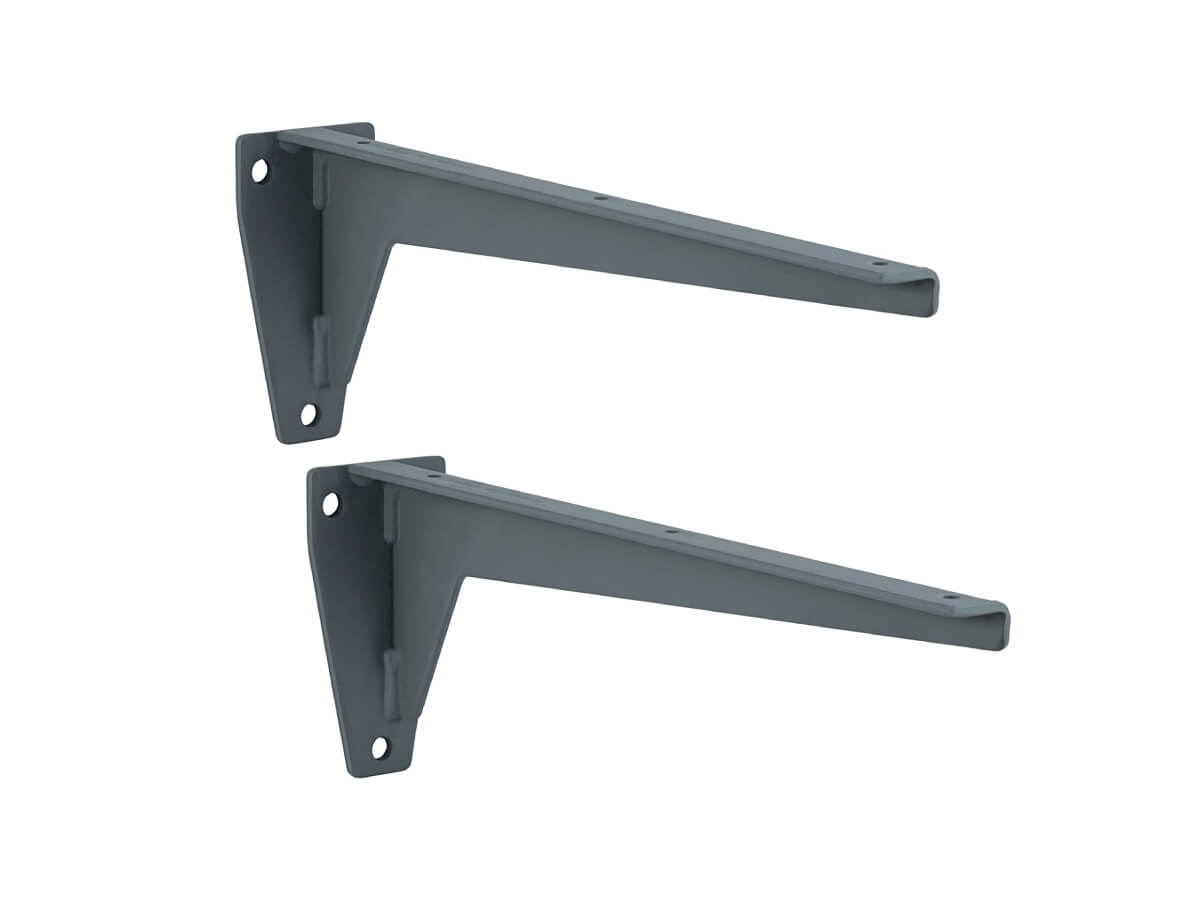

Heavy Duty Shelf Brackets For Deep Shelves - 150kg Capacity - 330mm

Heavy Duty Shelf Brackets For Deep Shelves - 150kg Capacity - 330mm

These Heavy Duty Deep Shelf Brackets have a 150kg Capacity making them perfect for deeper heavier shelves such as basin shelves.
£45.00 GBP
£45.00 GBP
Sale Sold out
  • ECO FRIENDLY COMPANY
  • FRIENDLY & KNOWLEDGEABLE TEAM
  • THOUSANDS OF REVIEWS

Description

The specified load bearing capacity applies:
-Only when used in pairs
-With even load distribution (surface loads)
-With proper and reliable attachment to the wall
-The fixing method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall (use other fixing material if necessary).

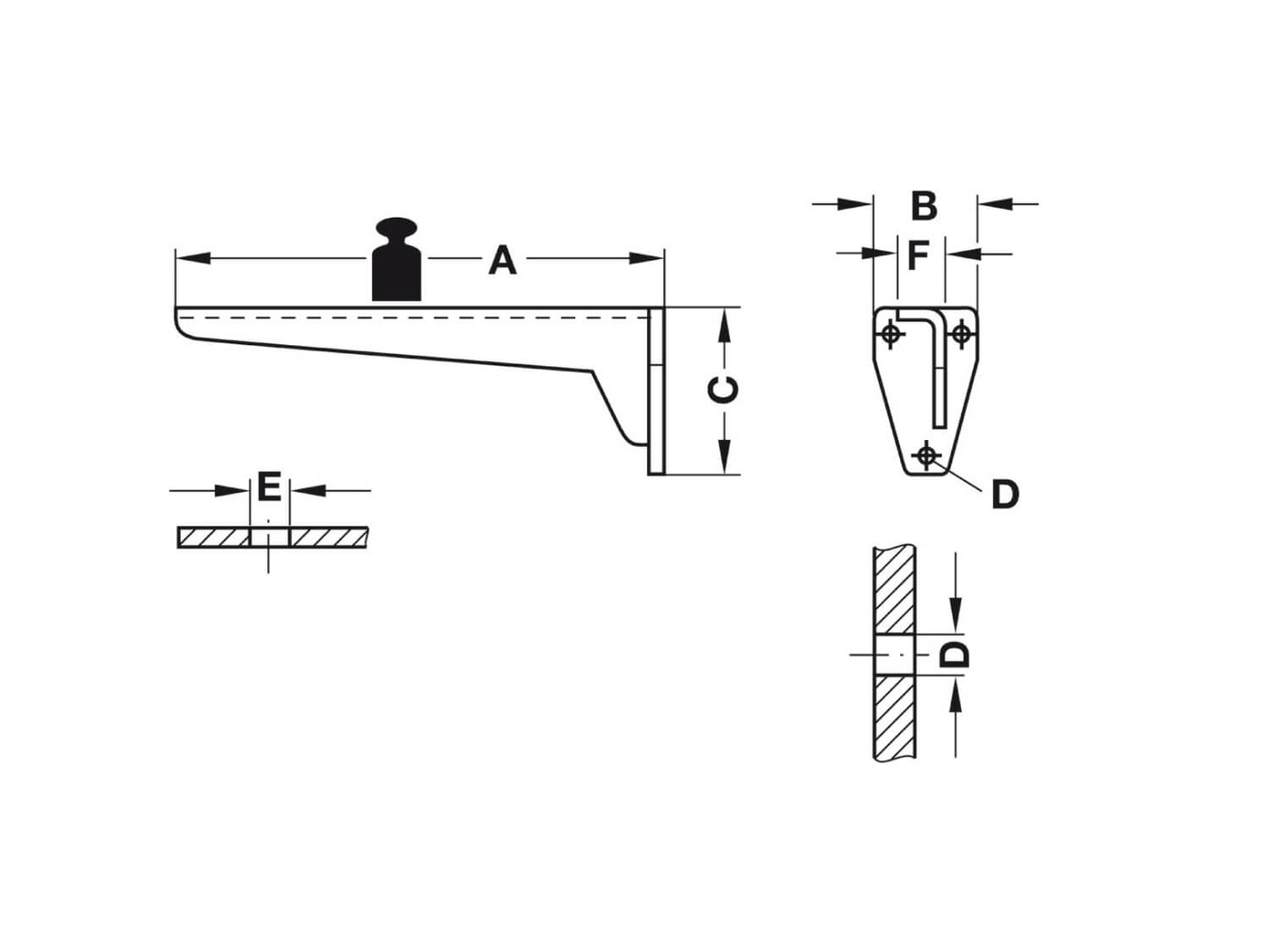

Dimensions (AxBxC): 330 x 53 x 100 mm, grey primed

Area of application

For wall mounting

Load bearing capacity per item

75 kg

Colour/finish

Grey, primed

Area of application

For wall mounting

Product version

Fixed

Material

Steel

Note on load bearing capacity

Per piece
tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test (with load bearing capacity 75 kg) or 2.5 kg plate for impact test (with load bearing capacity 250 kg), i.e. double load bearing capacity with surface load and 2 supports
shelf size must suit the respective bracket depth.

Installation reference

The load carrying capacity value shown is dependent on certain conditions:
Appropriate fixings are used to fix the brackets to the wall. Wall mounting must accommodate the load capacity
The load is distributed evenly
The long arm being mounted on the wall (where applicable)
Maximum distance between brackets 800 mm
The properties and materials of the shelves and walls as well as the type of mounting material used must be taken into account

Material

Steel

Supplied with

Order qty: 1 pc (1 pc = 1 bracket)
