Concealed Floating Fixing -
Floating shelf brackets for timber or masonry walls -
Floating shelf brackets -
Concealed shelf bracket
Floating shelf brackets for timber or masonry walls
Floating shelf brackets for timber or masonry walls
Couldn't load pickup availability
ECO FRIENDLY COMPANY
FRIENDLY & KNOWLEDGEABLE TEAM
THOUSANDS OF REVIEWS
Description
Description

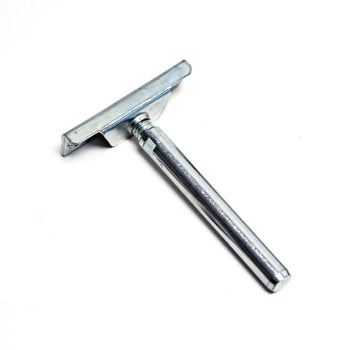

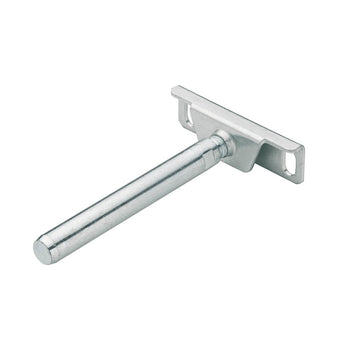

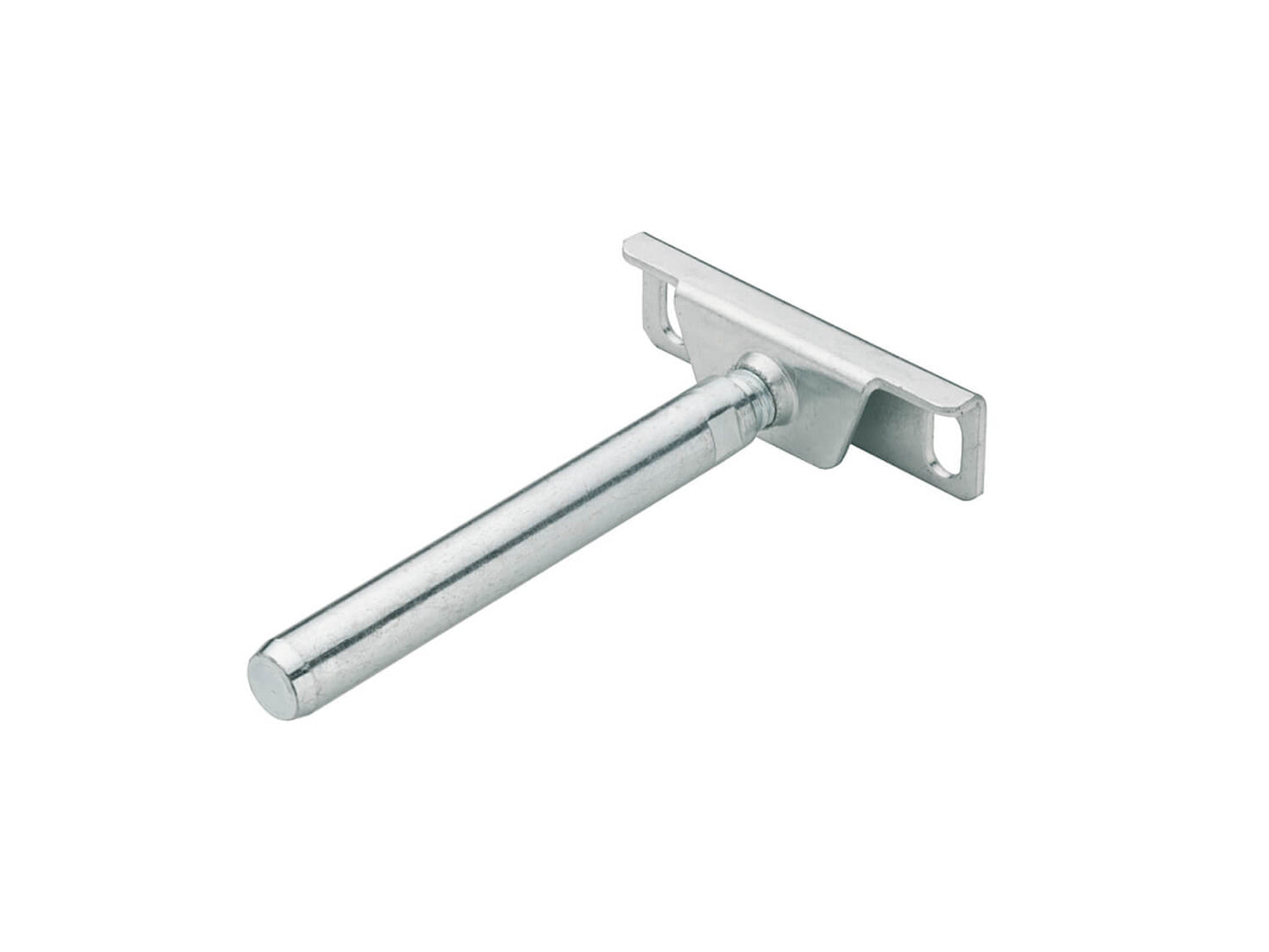

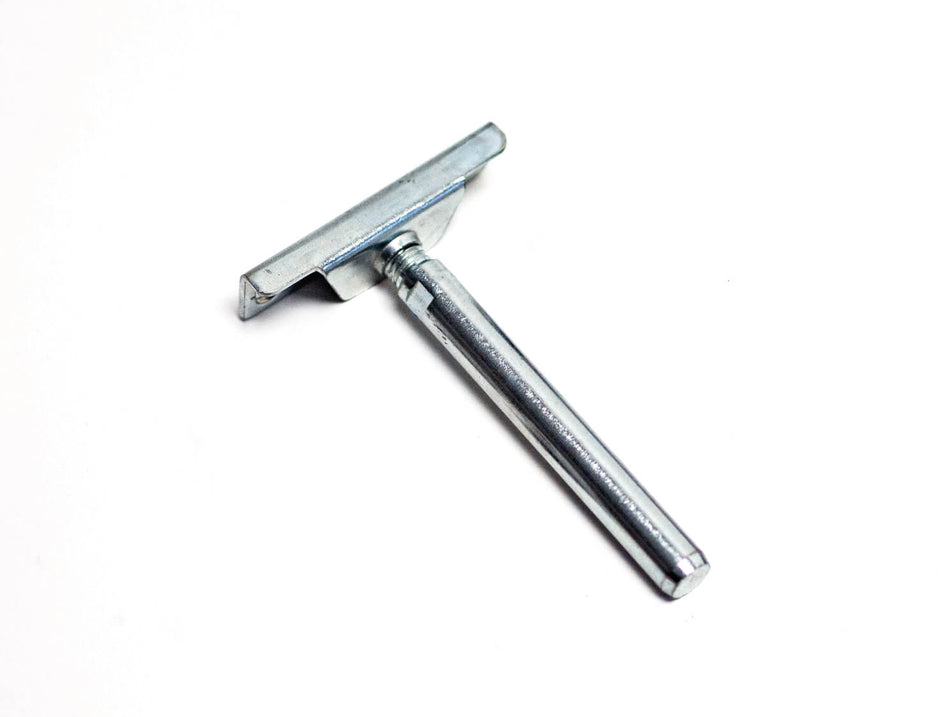

The Supporting pin is installed in a Ø 12 mm hole in the shelf, the pin may be exposed or concealed depending on the thickness of the shelf. Height adjustable via slots.Inclination adjustment using supporting pin which presses on the rear plate when turned in.
We advise creating a recess in the back of the shelf to allow shelves to fit flush with your wall to conceal the back plate.
These versatile T Bracket fixings are great for many wall types as they can be paired with different screws and wall plugs depending on your wall type. For example a general wood screw could be used when fixing into wooden studs or you could purchase grip fixings or hollow wall anchors to use in conjunction with these enabling the shelf to be fixed to a plasterboard wall.
For Shelf Thickness
≥24 mm
For Shelf Depth
≤300 mm
Version
With screw on plate
Area of application
For installation into woodwork or masonry walls
Material
Load bearing capacity
80 – 200 kg
The load bearing capacity of the shelf support is dependent on:
Shelf material
Shelf depth
Properties and condition of wall
Installation
For screw fixing to support element
For mounting in drilled hole in shelfOrder reference
More than 2 pcs may be required per shelf depending on shelf weight and dimensions
Supplied with
x1 Supporting pin with mounting plate, galvanized steel
(screws and wall plugs not supplied)
